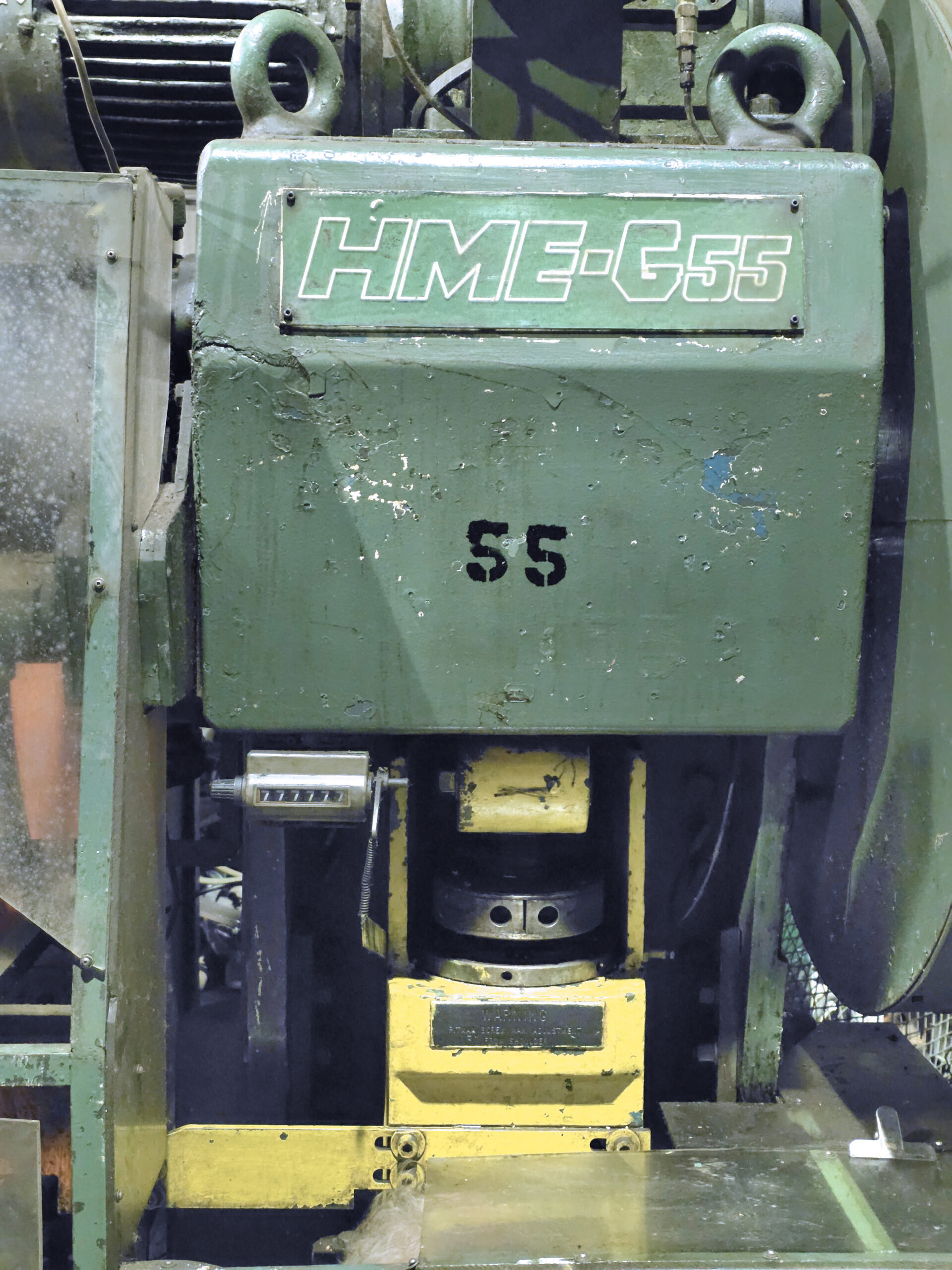

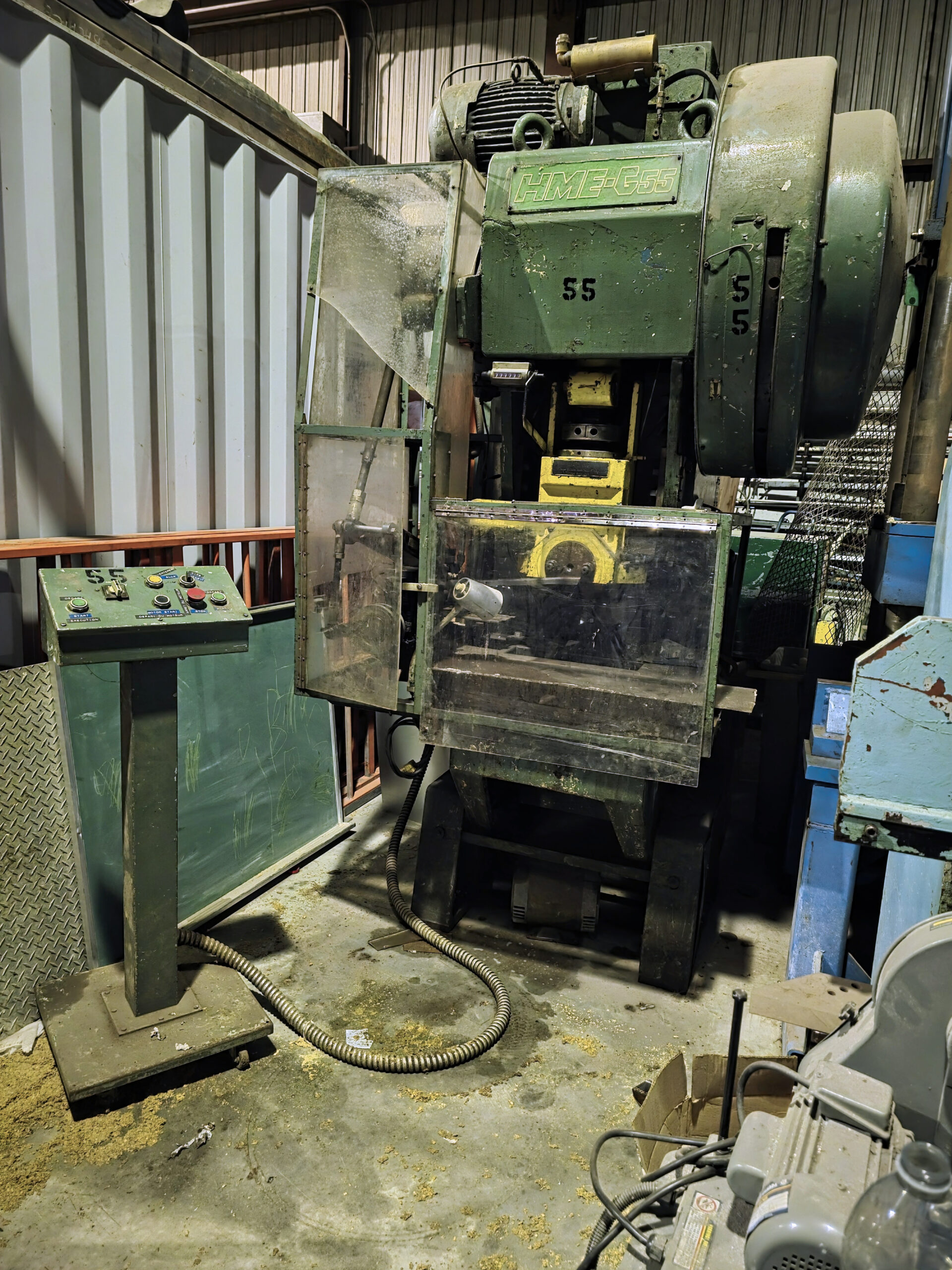

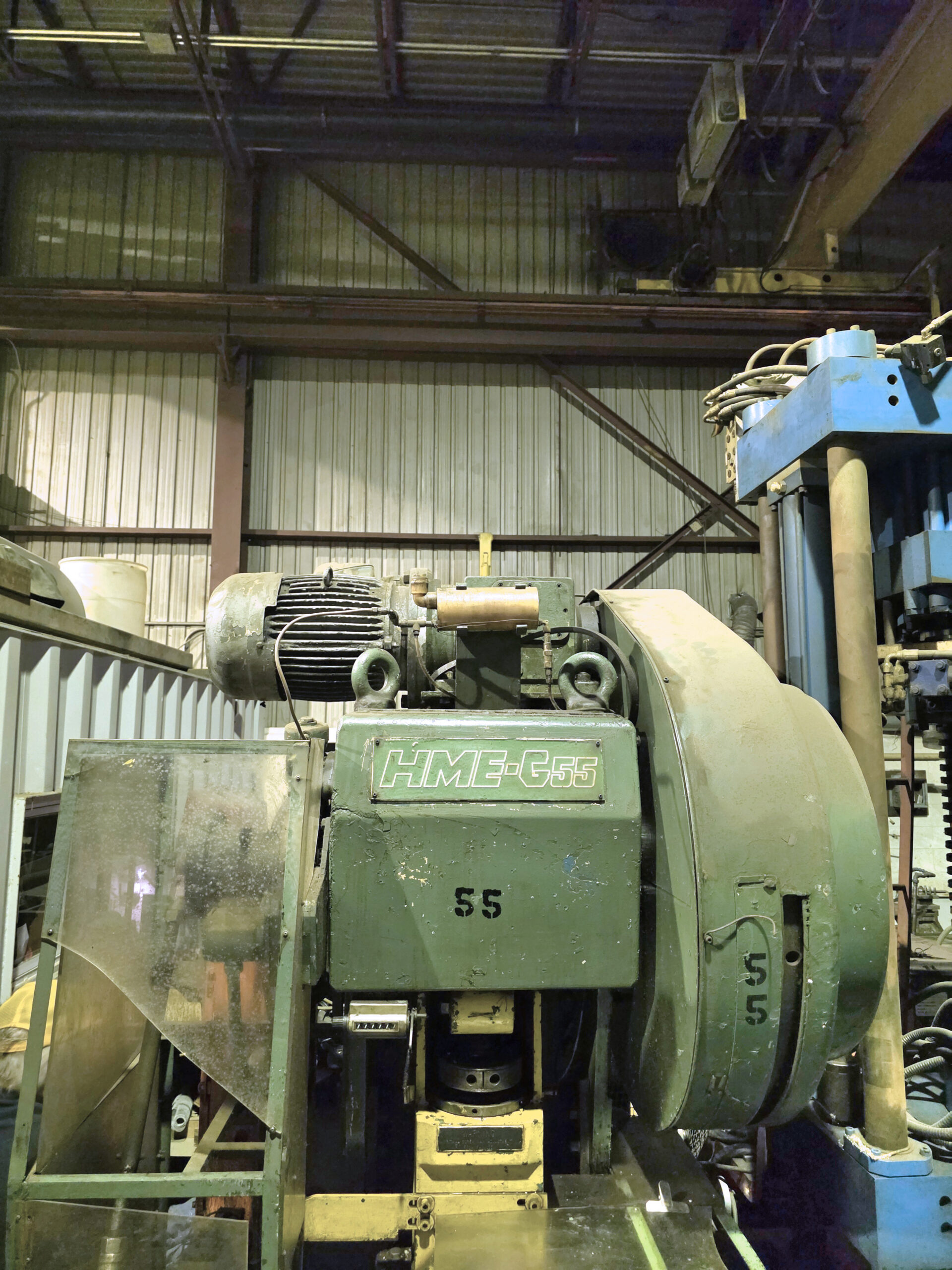

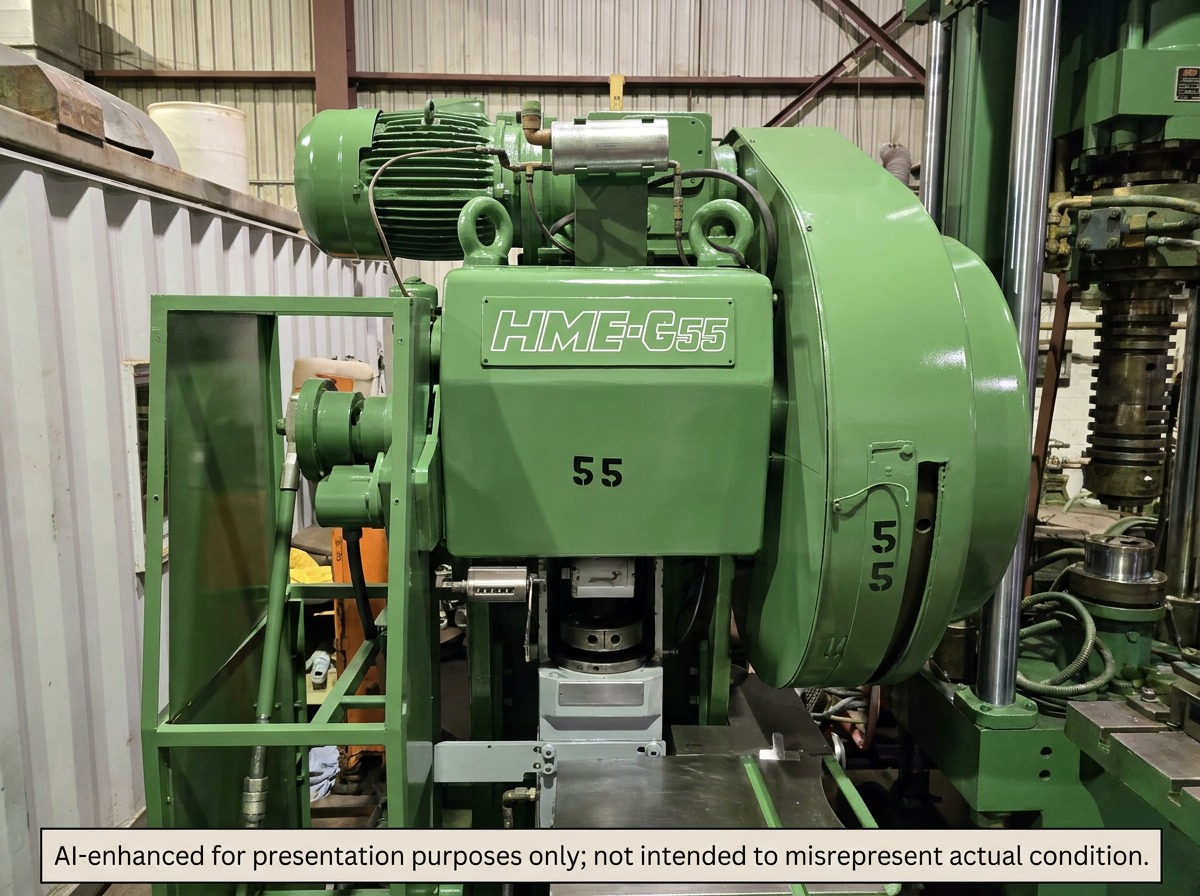

HME Model GH-55 OBI power press, 61 tons (55 tons British), Minster quality, with air clutch, variable stroke up to 4" and variable speed to 250 SPM.

Specifications

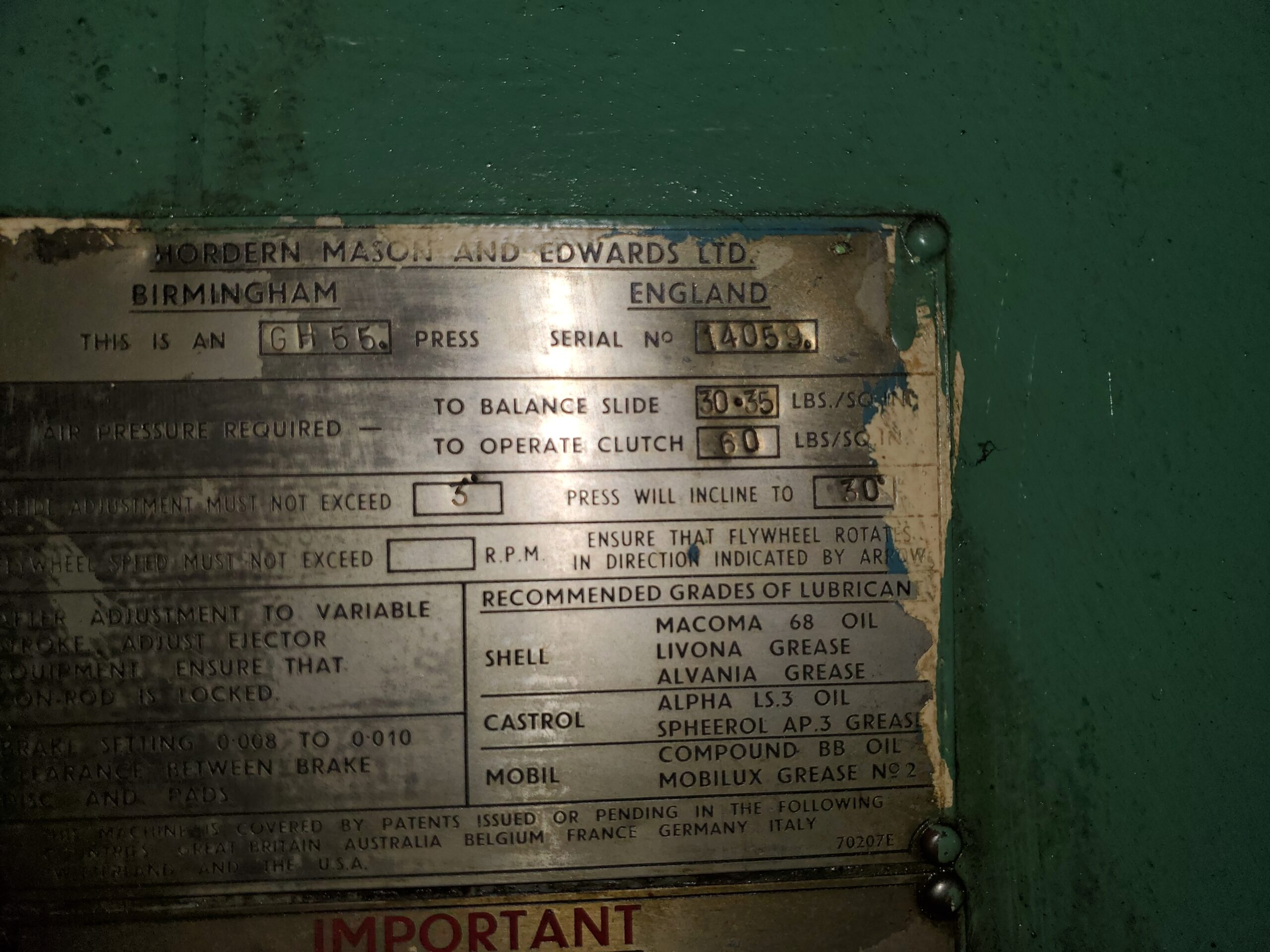

• Manufacturer: Horden, Mason and Edwards (HME)
• Model: GH-55
• Capacity: 61.2 tons (USA) / 55 long tons (British)

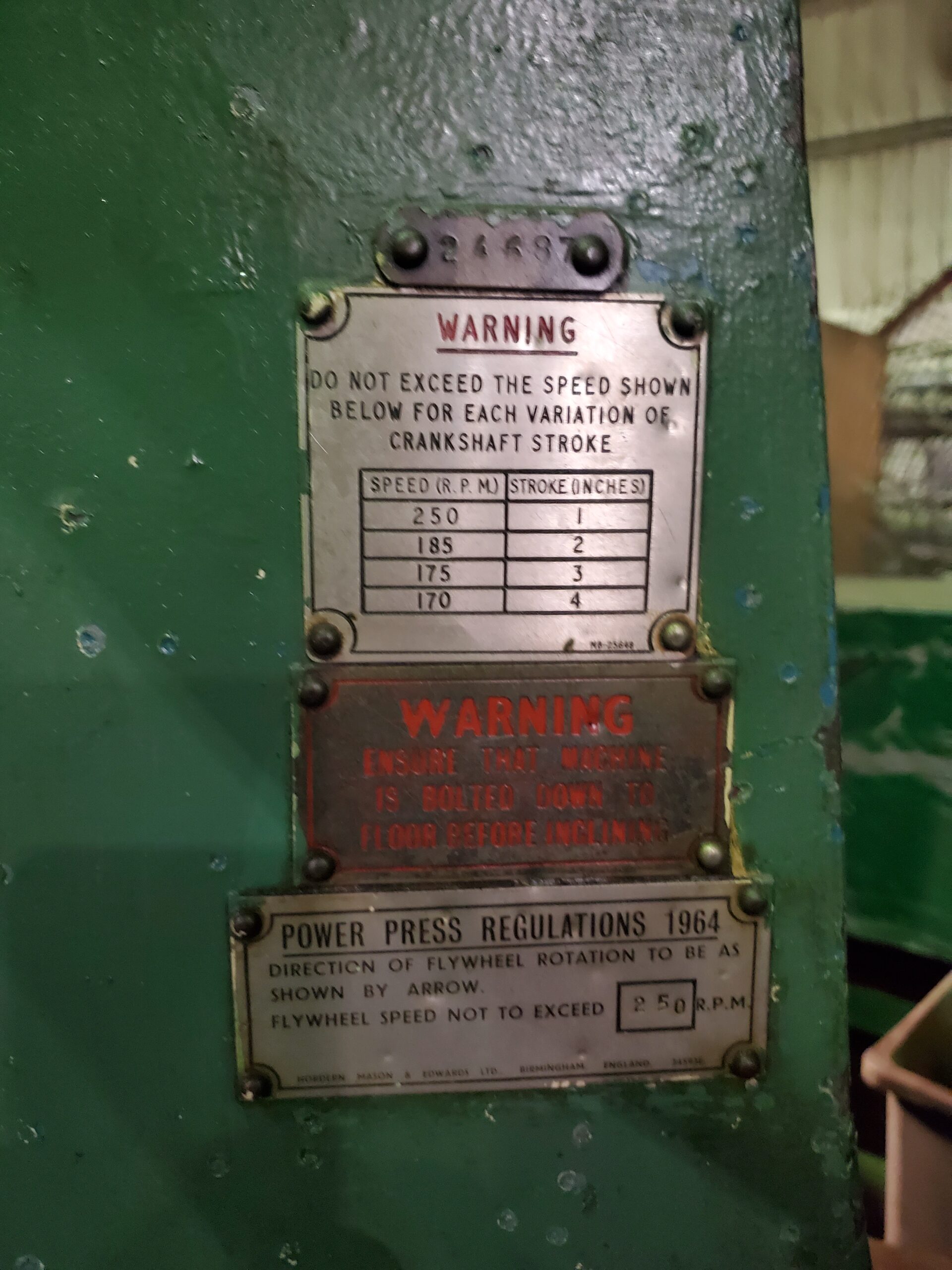

• Stroke: Variable from 1 to 4 inches
• Speed: Variable, up to 250 SPM

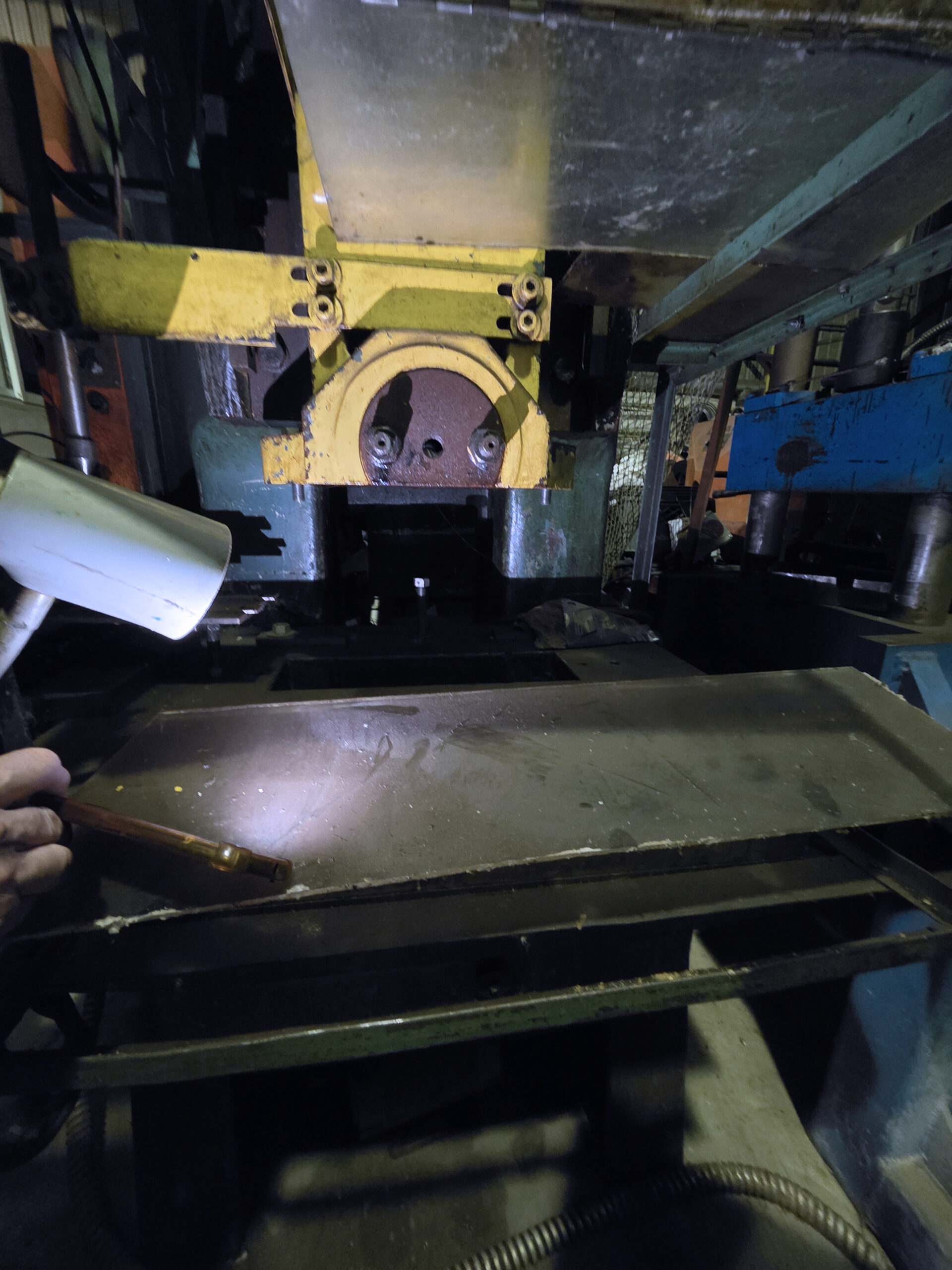

• Bed area: 31" L-R x 21" F-B
• Bolster plates: 3½" and 1½" (5" total), removable
• Ram area: 10" L-R x 10½" F-B (both mounting lugs on each side are in good condition)
• Ram adjustment: 3" (up and down)
• Shut height: Measures 15-3/4" over bed in its current position

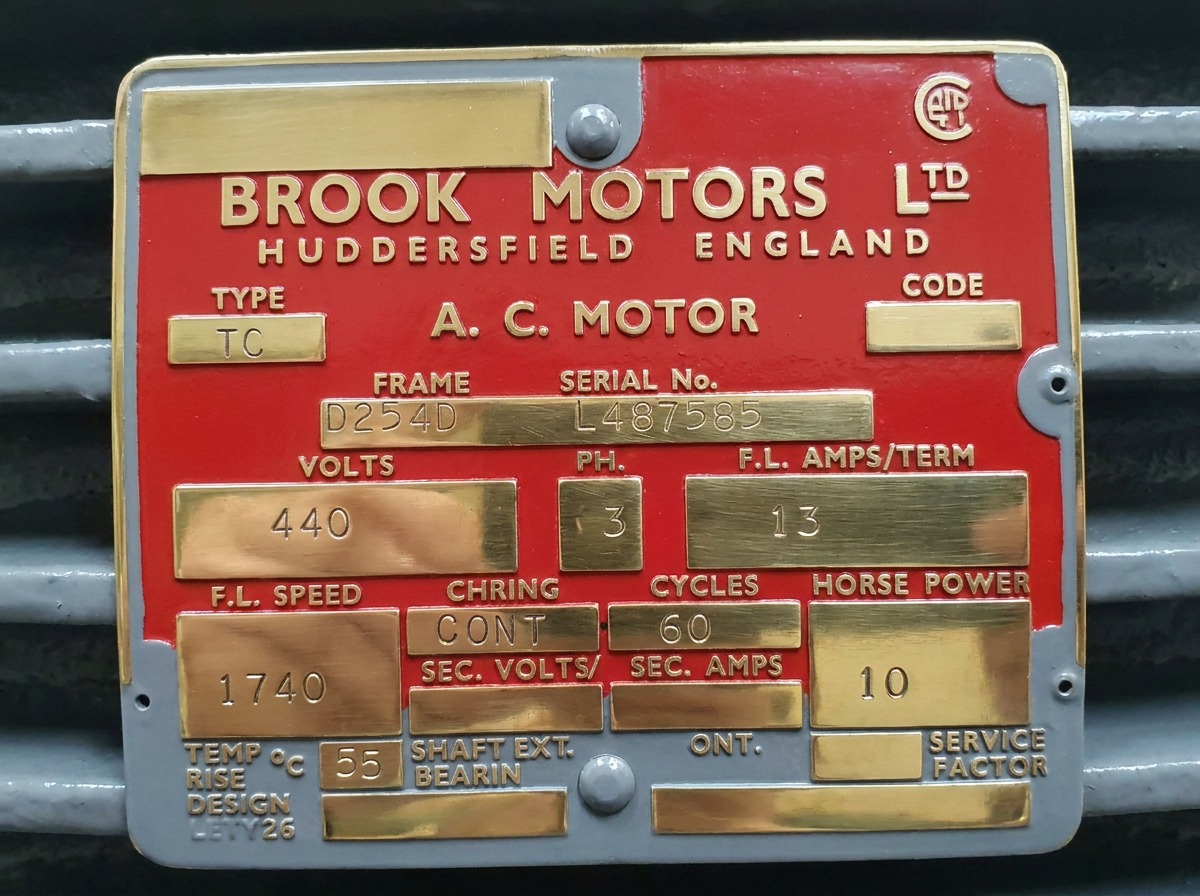

• Motor: 10 HP, TEFC, 440V/3/60 Hz

Equipped with

• Air "Hydragrip" clutch
• Full guards over crank and crankshaft areas
• Full clear plastic shields over feeder and main work area
• Rotating ring-type adjustable stroke
• Crank-actuated twin-roller strip feeder, installed
• Automated lubrication from central system
• Clear hinged guards on front of both press work area and feeder mechanism
• Easy-open hinged cover to access all parts of the air/Hydragrip clutch
• Ring bolts on top for easy hooking and lifting

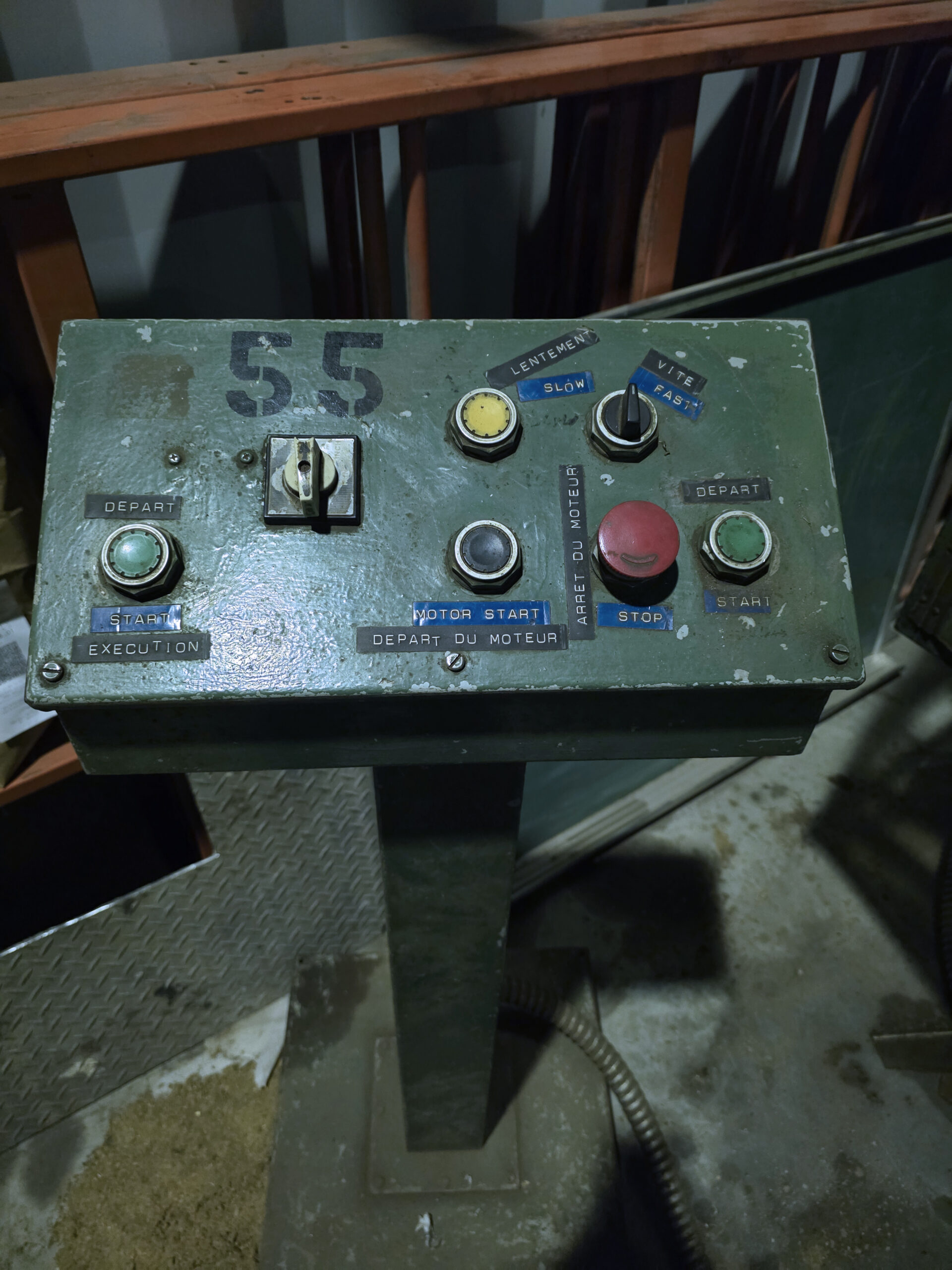

• Roll-around push-button control console: emergency stop, stop-start and jog buttons, process commencement, mode switch, etc.

Notes

Ex Scovil Corp. of Connecticut, RAU Canada division. The corporation closed down early this century and was effectively de-registered around 2009; the company had made the mistake of trying to get Chinese quality up to par. We bought the one-block-long building along with many of the precision presses and machine tools, and left it for the former highly skilled tool and die maker to reactivate with his children. That never happened. So this press has probably seen no service in over 25 years! It was always stored by us in dry, indoor premises.

Horden, Mason and Edwards (HME) have a sterling reputation for robustness!

Price, FOB warehouse #2, Montreal, free loading: $11,500 USD (negotiable).

We have among the lowest freight rates to all lower 48 states and all of Canada. Call for details, between 8 am and 8 pm.
