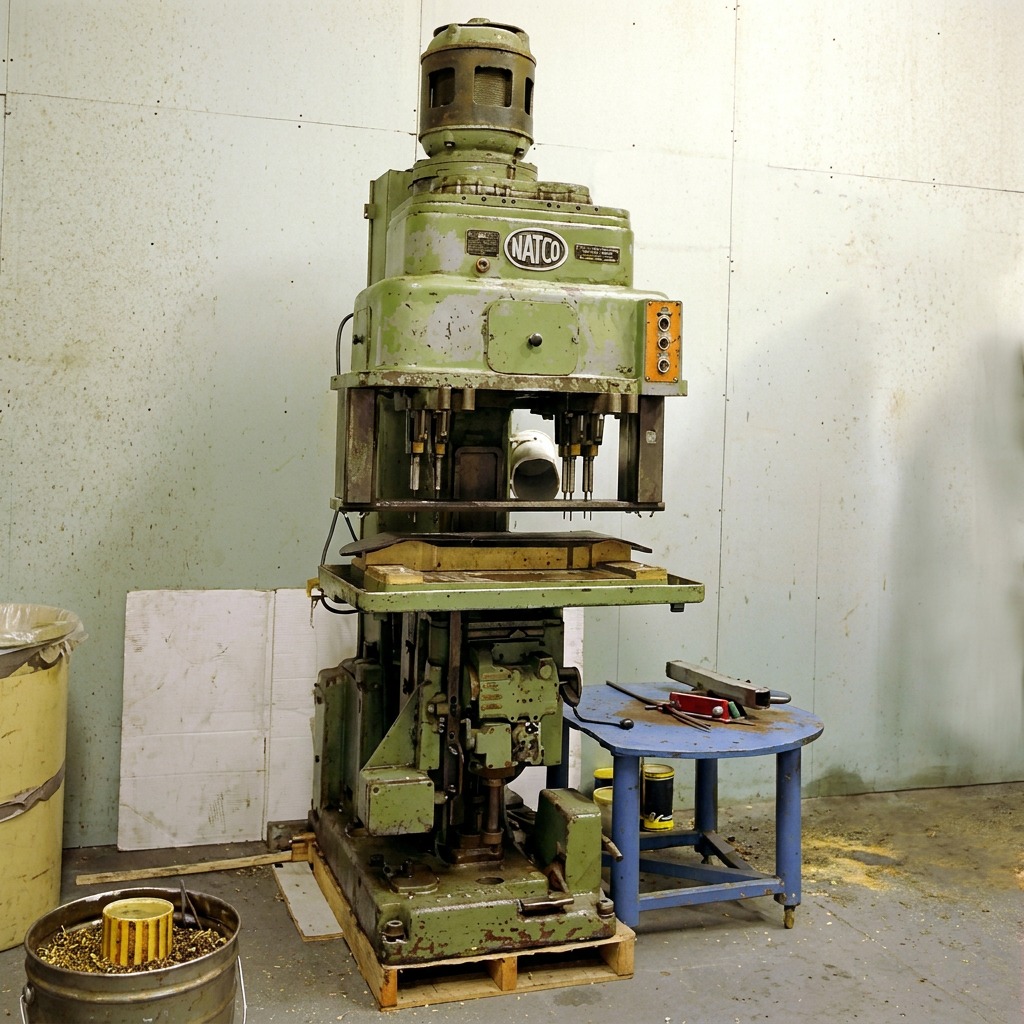

Natco 3″+ CAPACITY “Hole-steel” Column Drill

$4,500.00 USD

  • Specifications:
    Manufacturer:                         NATCO (National Automatic Tool Company)
    Model and S/N:                      “HOLESTEEL” , s/n 3AL-305
    Throat:                                    14″ ± (Swing – 28″±)
    Max. Work Height:                 36″ (Spindle Nose to Table)
    Spindle Taper:                        No. 5 MT (3″ Cap.)
    Table Machined Width:         40″
    Table Overall Width:             47″ (Outside edge of coolant gutters)
    Table Machined Depth:         23 “
    Table Overall Depth              30 ”     ”           ”      ”      ”           “
    Motor, Spindle Power:          10 HP @ 1160 RPM,  550/3/60
    Motor, Head Elevation:          3 HP @ 1750 RPM, 550/3/60
    Weight (est.):                          7 tons

SKU: sku-0004-1-1-1-2-1-1-1 Categories: ,

Description



Dimensions:
           Overall Height:          139¼”
           Front to Back:            77″
 FEATURES:
         *   Full Console Controls, front panel mounted
*   Power Head Elevation
*   Coolant pump
*   Stop-Start-Jog
*   Auto Cycle
*   Retract, Advance Drill etc.
*   Motorized Auto-Lubrication

NOTES:
            This heavy duty production drill was removed from the repair shop of a
            PAINT MANUFACTURER in 1985 and has not worked since!. It appeared
            to be in excellent condition at that time. Now for immediate sale. The later
master mMachinery salesman, Gerry Rogers, engineer at GM, told us
“GM used to use these to bore engine blocks.”  Needs some serious TLC.

Price, FOB our warehouse, Montreal . . . . . . . . . . . . . . . . . . . . . . . . $ 3900 USD
or . . . . . . . . . . . . . . . Best Offer or Swap.
