Description

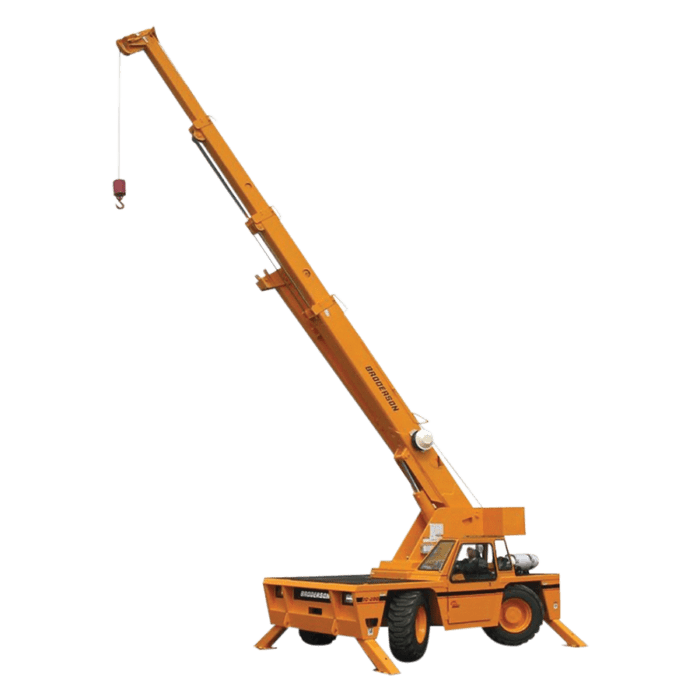

The Broderson IC-200-2C is a 15-ton industrial self-propelled carry deck crane.
It is highly, prized for its compact size, heavy-duty chassis, and versatility in tight environments.
Details:
- Capacity (max.) . . . . . . . . . . . . . . . . . . . 30,000 lb. (with double sheave hook block)
- Max boom length . . . . . . . . . . . . . . . . . . 50ft + Jib extension 16 ft.
- Boom . . . . . . . . . . . . . . . . . . . . . . . . . Triple Telescopic, + Auxilliary Jib Boobm-16ft.)
- Rotation . . . . . . . . . . . . . . . . . . . . . . . . 360 °
- Hydraulic outrigger legs on 4 corners.
Capacities:
-
- Maximum Lift Capacity: 30,000 lbs (on outriggers).
- Pick and Carry Capacity: Up to 17,000 lbs.
- Deck Capacity: 17,000 lbs (self-loading carry deck).
Dimensions:
-
- Height: 7’ 11″ 2.41 m)
Width: 7’ 10.5″ (2.39 m)
Tip Height, max: 73′ (22.25 m)
Horizontal Reach, max: 66′ (20.12 m) - Turning Radius: All-wheel steer allows the crane to maneuver easily in constrained industrial projects.
- Operating Weight: Base crane weighs around 27,640 lbs.
- Height: 7’ 11″ 2.41 m)
Boom Specifications
-
- Main Boom: 3-section telescopic boom measuring up to 28′ to 36′ depending on the exact sub-model.
- Jib: Equipped with 15′ offsettable jib extensions.
Engine & Powertrain
-
- Engine: Cummins 4BT3.9 diesel engine.
- Transmission: Powershift transmission with 4 speeds forward and reverse.
===============================================================
