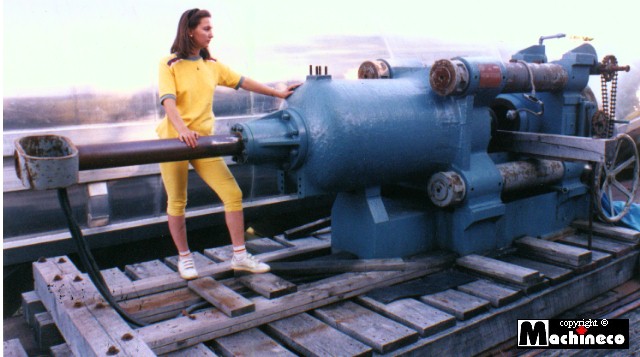

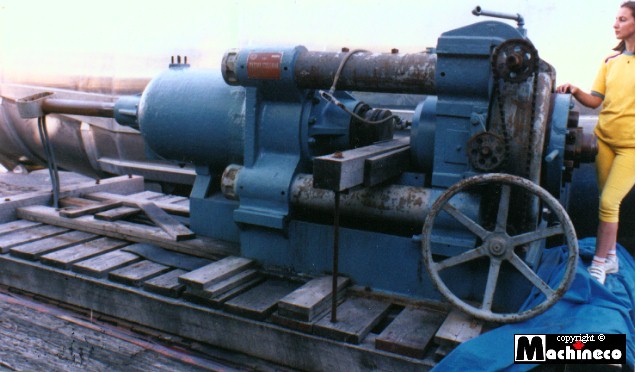

Watson-Stilman horizontal extrusion press. The press was used for cordite extrusions by the US Department of the Army. It is complete with hydraulic power supply and grain cutting unit. The entire chamber can be opened by breech load on the die end of the press.

Specifications

• Stock number: C1636
• Manufacturer: Watson-Stilman
• Serial number: 8918-25
• Capacity: 600± tons
• Cylinder stroke: 32"
• Chamber diameter: 11" (billet diameter)
• Piston diameter: 26"+

Features

• 32" stroke swing breech
• Horizontal
• Complete with power units and material handling equipment
• Excellent condition
• For cordite extrusion (convertible to lead, aluminum, etc.)

Dimensions

• Overall: 184" length (cylinder open) x 56" W x 60" H

Notes

Location: Montreal, Canada

Price (ex-location, Canada): $25,000 USD or $40,000 CAD
