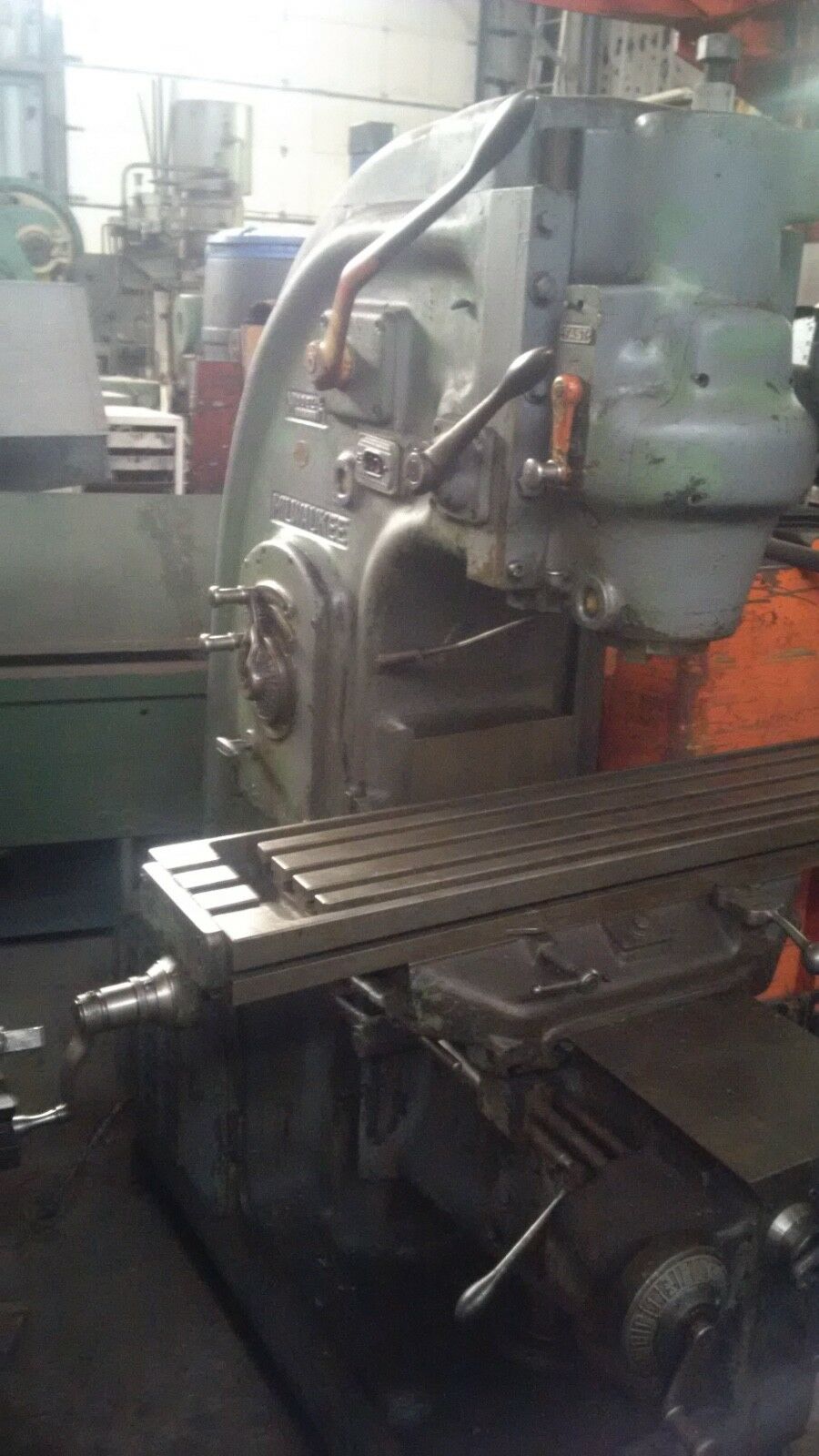

Milling, vertical, K&T Milwaukee Mod.H, 10×50 table. Power X,Y & Z

$3,900.00 USD

“Price reduced! Normal wear from use. This machine appears robust and in mostly original grey paint. It has all feed and speeds and appears to be complete and runs ok. There are no cracks or welds, and no major leaks. For a machine of experience, the table is remarkably free of ‘error cuts’ or divots. We believe that all the gears in the drive train are complete along with the speeds and feeds.. Also see the notes below for more details.The motor runs well. We chopped the price as it needs one replacement gib as the X axis gib seems missing. NOTE: Complete parts manual is available for this model- you can compare the dwgs: http://vintagemachinery.org/pubs/2098/6562.pdf”



Categories: ,

Description

K&T ‘Milwaukee’  Model 2H type Vertical Milling Machine



Model:  . . . . . . . . . . . . . . . .  2H

Table size . . . . . . . . . . . . . .  10” F-B x 50” L-R

Spindle speeds (16) . . . . . .  35-1400 rpm

Feeds, (16) . . . . . . . . . . . . .  1/2″  –  20 ipm

Feeds, power . . . . . . . . . . .   Yes, X, Y and Z axes

Motor . . . . . . . . . . . . . . . . . .    5 HP, 3 phase



COMMENTS:

This heavy-duty milling machine still has lots of miles of milling to do.  One day, shortly before closing and moving out to a new location about 1995, and left us some equipment in lieu of rent owing.   We sold the building and moved the remaining machines to our indoor warehouse.  Our business went through a lot over the last 20 years, many items sat around as we dealt with other big problems.  This machine was totally ignored.  Then we decided this fine piece of American iron deserved to find a new, appreciative owner.



The former operator told us before leaving, that he needed another vertical mill … “because this one wasn’t milling straight.”  No wonder!  We discovered the X axis gib was missing. Someone had removed it and the table could be visibly wiggled!

See several Youtube instructions by searching “make machine gib” .



All the old Cincis and Milwaukees are slowly disappearing.  Now’s your chance to pick up this classic; it looks identical to the “Milwaukee No. 2, Model H”, illustrated on page 4 of K&T’s Parts Manual. See this at http://vintagemachinery.org/pubs/2098/6562.pdf



We can tell you the best way to get it into your garage or small workshop, if you’re a private machinist, saving even more 100s of dollars. We’ll have a gib made up, at cost.



Price, FOB warehouse  . . . . . . . . . . . . . was $4,900 NOW pay only $3,900.00USD!



While all shipping related costs are extra, we’ll use our warehouse cranes to load this machine at no cost to you.

Call anytime,for info,  questions.  It’s toll free: at 1-888-459-4025,

Anytime between 8 am – 8 pm, Mon. – Sat. (or leave a message)

We’re really friendly- and it’s much better than back and forth messages 🙂

This milling machine can go anywhere in N. America duty-free.  Let us help you ship at the most economic cost AND do your paperwork hassle-free – right to your door- just give us a call !



NOTE: Much of our inventory is on our Machineco, Montreal website-

so it’s subject to prior sale, even if still currently listed.  All shipping

related costs are necessarily extra.
